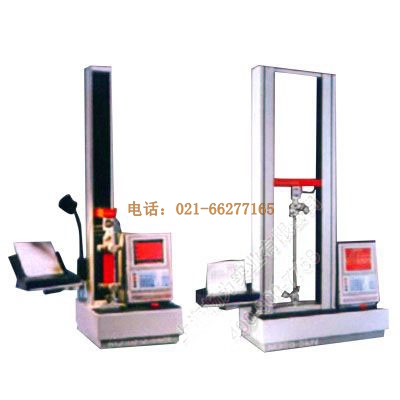

商品名稱：TNJ05 系列高級萬用強力機

高級萬用強力機，特別適用于紡織品的強力測試，低成本，高性能。無控制面板,直接采用電腦控制，高分辨率平面圖象顯示，測力讀數自動選程。本機精度±0.5%,測力傳感器最高精度可達1/1000個單位。加載速率1000/s�？纱尜A多達100個測試方法并對數據進行恢復。

直接打印出A4或信紙測試報告，包括獨立測試結果、統計分析及測試。測力傳感器800％超載保護，自動識別功能，可選單位：N，kgf，lbf，mm和英寸。丁字頭運動顯示讀數可精確至0.001mm，絕對丁字頭位置可精確至0.001mm。精密滾珠絲杠及引導系統、高精度閉環速度控制器、緩行裝置及可選快速返程、微機RS232接口，定載及行程保護限制，即時負載及拉伸循環測試，長期蠕變測試。

數字控制試樣破壞檢測功能，自動返回無機械張力狀態的測試位置，自動檢測校準功能，沖擊保護，可選自動復位，自動回零。

Particularly applicable to the strong textile testing, low-cost, high-performance. No control panel, the direct use of computer-controlled, high-resolution image plane, measured reading of the automatic election process. The accuracy of ± 0.5%, the most high-precision measurement of the sensor up to 1 / 1000 units. Loading rate 1000 / s. Can be stored up to 100 tests and data recovery.
Direct print A4 or letter-test reports, including the independent test results, statistical analysis and testing. Force sensors 800% overload protection, automatic identification, optional units: N, kgf, lbf, mm and inches. Three-way movement shows that the first reading can be accurate to 0.001 mm, the first Three-way location can be absolutely accurate to 0.001 mm. Precision ball screws and guidance systems, high-precision closed-loop speed controller, Postponed optional devices and rapid return, RS232 computer interface, will be contained and itinerary protection restrictions, immediate load and tensile test cycle, the long-term creep testing.
Digital control sample damage detection, automatically without mechanical tension to return to the state test location, automatically detect calibration, impact protection, optional automatic reduction, automatic back to zero.

技術參數Techniques：
TNG05-1(單臂Single Column) TNG05-2 TNG05-3 TNG05-4 TNG05-5
量程Range 3.0kn 5kn 10kn 25kn 50kn
300kg 500kg 1000kg 2500kg 5000kg
行程（不包括夾具長度）Tour (excluding fixture length)
1100mm 1100mm 1100mm 1050mm 980mm
長Length 460mm 770mm 770mm 910mm 910mm
寬Width 440mm 450mm 450mm 500mm 1620mm
工作截面Working section100mm 295mm 295mm 420mm 420mm
速度范圍Speed Range 0.001-1000mm/min 0.001-500mm/min
返程速度Return speed 500mm/min 500mm/min 1000mm/min 500mm/min 500mm/min
重量Weight 43kg 95kg 115kg 190kg 235kg
標準Standards: BS EN10002-2 ASTM E-4 BS 1606/0.5 AFNOR A03-501 DIN 51221/1 M&S P11,P12,P13,P14,P14A P98,P115
